High degree of precision due to the use of servo drive in the welding heads
Very short welding times approx. 25% – 30% shorter than standard procedures
Digital process control and monitoring due to profile-related welding parameters

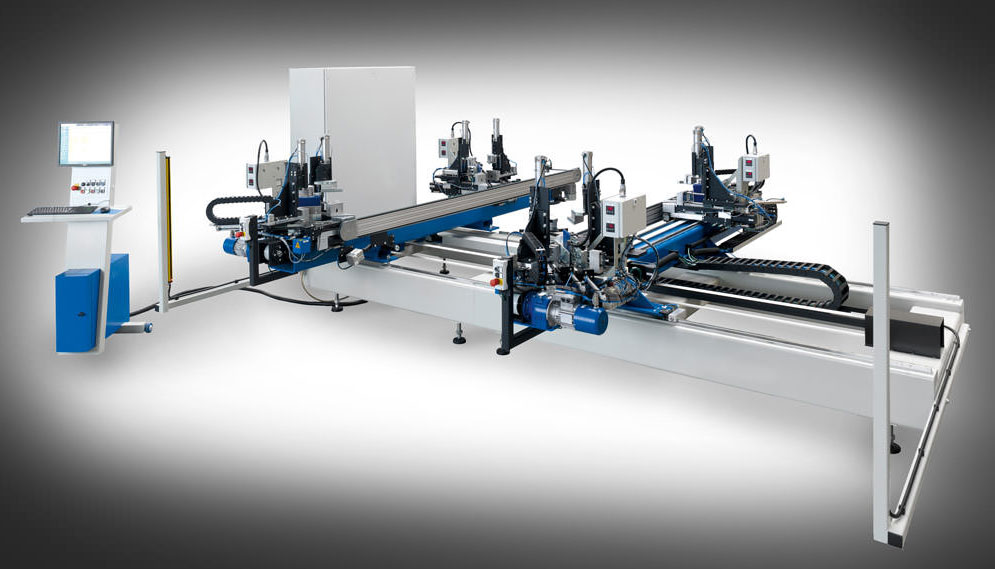

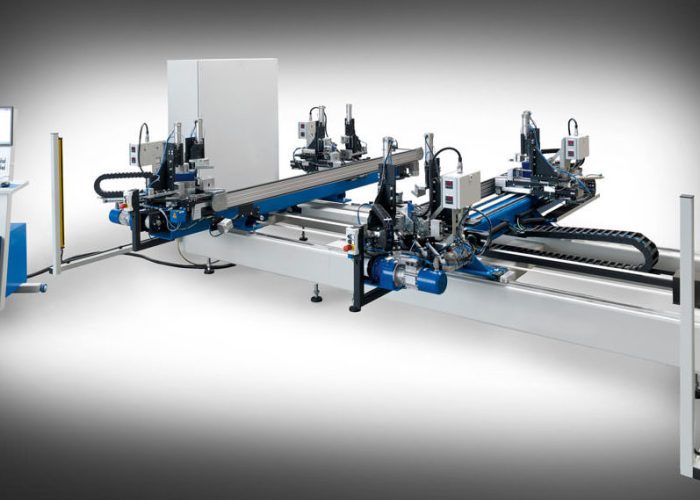

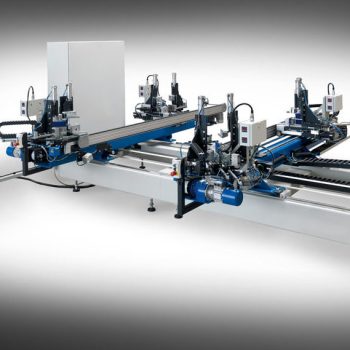

HSM-TURBO
The Advantages
- Turbo welding process by using double servo drive per welding head
- Welding accessories quick-change system
- Inner seal limit
- Alternating welding frame/casement
- Frames combination welding
- Front door welding longitudinally and transversely
- Excessive length welding
- HFL welding (wooden window frame look)
- Removal handling system (optional)
- Mounting frame welding with inner stop (optional)
- Integration into a welding/cleaning line possible
The Advantages
- Diagonal and parallel joining methods
- Screen dialog system under Windows
- Data management via database
- Welding bead limiting device, heated
- Individually programmable welding parameters
- Removal handling system (optional)
- Mounting frame welding with inner stop (optional)
- Integration into a welding/cleaning line possible
Technical Data
Component size min
| min. 330 x 320 mm (330 x 340 mm with lateral discharge conveyer) |
Component size max. |
4max. 3000 x 4000 mm (W x H) |
Profile depth min |
40 mm |
Profile depth max |
120 mm, up to 220 mm |
Profile view width max |
130 mm |
|
