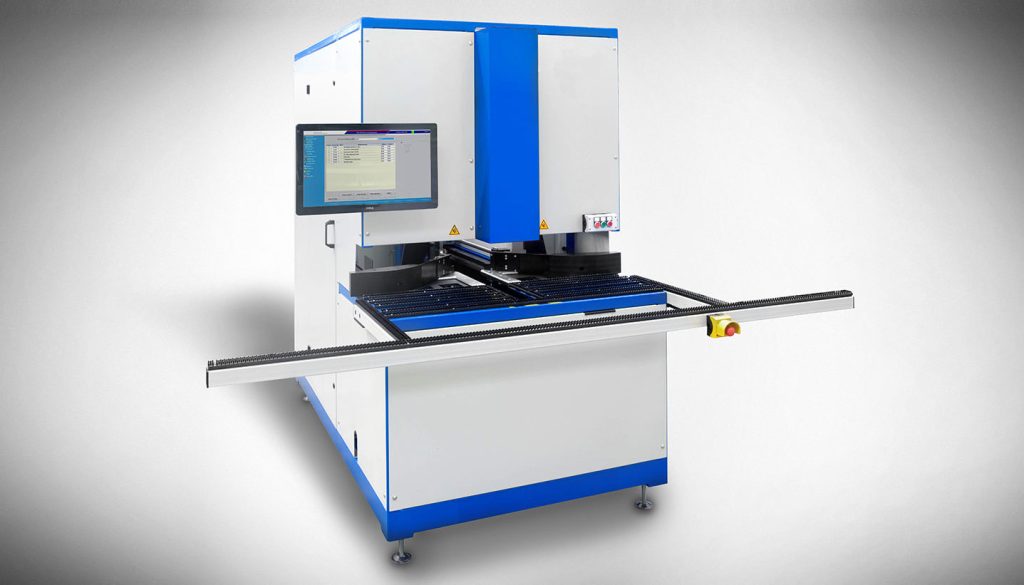

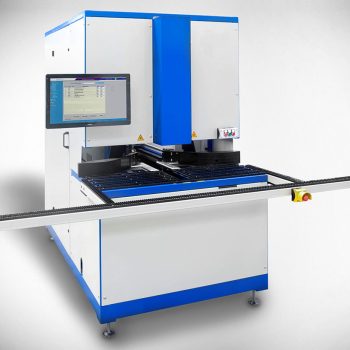

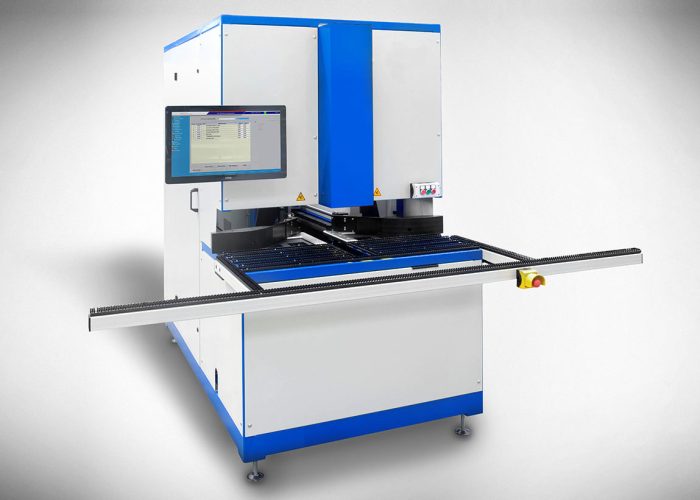

Randomly programmable screen dialog control with 23 inch touch screen with graphic display the profile cross-sections and display of the respective processing steps

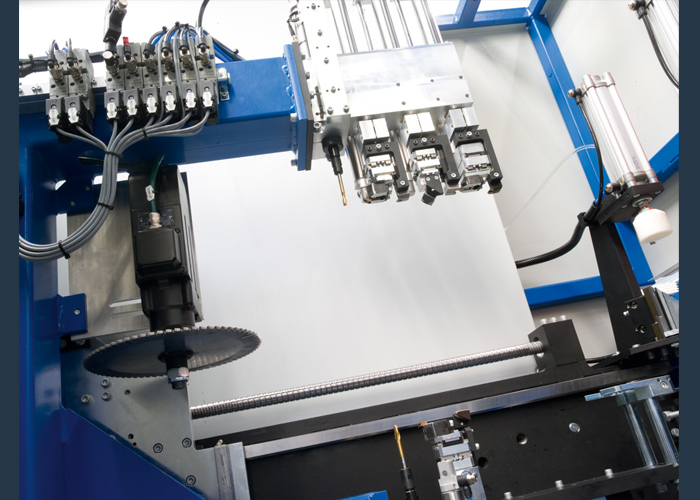

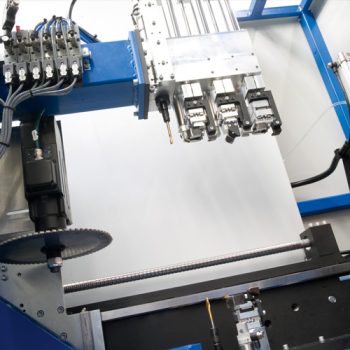

Tools for internal machining with linear guide technology for highest precision

Randomly programmable screen dialog control with 23 inch touch screen with graphic display the profile cross-sections and display of the respective processing steps

Tools for internal machining with linear guide technology for highest precision

The Advantages

  • 2-axis single-head plastering machine, medium size randomly programmable
  • User interface under Windows operating system
  • For processing 90° inside and outside corners
  • Flexible outer contour machining using a saw disc
  • Modular tooling

Standard tooling

  • Upper machining Inner corner and grooving blade (design as V-groove available), 1 bevel unit, drilling motor, exterior contouring sawing disc
  • Lower machining: Inner corner and shadow groove blade (design as V-groove available), drill motor

Optional tooling

  • Radius machining with KI knife assembly
  • Flat cleaning for coloured profiles with FME knife unit possible
  • Sliding frame machinable with HIR milling unit, additional processing on request
  • If using variant 2AML, an integration of a turning station is possible

The Advantages

  • 2-axis single-head plastering machine, medium size randomly programmable
  • User interface under Windows operating system
  • For processing 90° inside and outside corners
  • Flexible outer contour machining using a saw disc
  • Modular tooling

Standard tooling

  • Upper machining Inner corner and grooving blade (design as V-groove available), 1 bevel unit, drilling motor, exterior contouring sawing disc
  • Lower machining: Inner corner and shadow groove blade (design as V-groove available), drill motor

Optional tooling

  • Radius machining with KI knife assembly
  • Flat cleaning for coloured profiles with FME knife unit possible
  • Sliding frame machinable with HIR milling unit, additional processing on request
  • If using variant 2AML, an integration of a turning station is possible

Technical Data

Component size (clear inside dimension) 190x190 mm (BxH)
Component size max. 3000 x 3000 mm (in reversing operation, 2AML)
Profile depth min 40 mm
Profile depth max 160 mm
Profile view width max 130 mm

Technical Data

Component size (clear inside dimension) 190x190 mm (WxH)
Component size max. 3000 x 3000 mm (in reversing operation, 2AML)
Profile depth min 40 mm
Profile depth max 160 mm
Profile view width max 130 mm
